DME&JDE Hose-Crimper 16-Pneumatic For Field Operation or Frequent Moving Maintenance

The series of Hose-Crimper 16-Pneumatic hose crimper machine are the portable types, which are suitable for field operation or frequent moving maintenance. Hose-Crimper16-Pneumatic is a highly cost-effective machine developed and designed in collaboration with a French hydraulic team. The small and portable machine is driven by manual hydraulic pump and can be reset mechanically, which greatly reduces the labor intensity. The special material has high strength performance and the glossiness of work surface reaches a highest level after CNC and heat treatment. All of above enable it to be the best choice for your

DME&JDE Hose-Crimper 16-Pneumatic

Features

Novel appearance.
Operation in line with manual functional science
The patented product of mold replacement tool, 100% efficiency improvement and easy operation
Machine head adopts one piece forging parts with high strength.
7 sets of molds are provided to fit your crimping requirements. And all molds are treated through 2 times of vacuum polishing, with a high degree of finish and long service life.

Details

Farging process,high strength strong

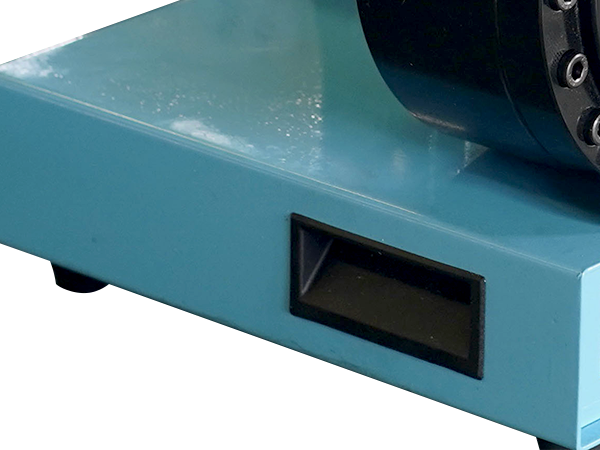

Machine body

Battery case

Unloading valve

Hand pump

Dies cabinet & Clamper Die :7 PCS

Size regulator

Indicator light

Indicator check valve

Specification

Table 1: Crimping Machine Technical Data
Max Hydraulic Hose	25mm ( 2SN )
Crimping Range	47mm ( 2SN 1” Ferrule )
Die Type and Quantity	7 PCS
Die Type	14/16/19/23/27/31/55 mm
Max Opening	52 mm
Master Die Length	55 mm
Crimper Speed	Standard
Crimping Force	1000 KN
L × W × H	380 × 350 × 290 mm
Weight	27 KGS

Table 2: High Pressure Dies Specification
Number	Die No.	Crimp Range (mm)	D (mm )	L (mm)
1	14	14-16	14	60
2	16	16-19	16	60
3	19	19-22	19	60
4	23	23-27	23	60
5	27	27-31	27	60
6	31	31-35	31	60
7	35	35-39	35	60

Notes: standard die sets are included, others are options.
