ISO 11237 R19 Wire Braided Hydraulic Hose

Applicable Specs:
  • SAE 100R19
Applications:
An icon of engineering equipment of hydraulic hose application. An icon of agricultural equipment of hydraulic hose application. An icon of automation equipment of hydraulic hose application. An icon of port equipment of hydraulic hose application. An icon of petroleum equipment of hydraulic hose application. An icon of high way construction equipment of hydraulic hose application. An icon of marine equipment of hydraulic hose application. An icon of coal mine equipment of hydraulic hose application. An icon of building equipment of hydraulic hose application. An icon of machine tool equipment of hydraulic hose application.
German Technology Equipment German Technology Equipment
Product Series:
  • DME&JDE DEFT FLEX Series Products

    Ultra Soft & Flexible

  • DME&JDE EXACT FLEX Series Products

    Super Impulse & Pressure

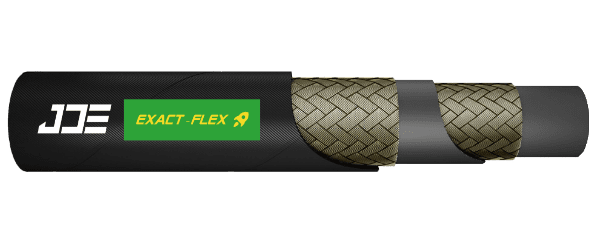

An ISO 11237 R19 fluid hydraulic hose.
  • An icon of flexible hoses inner tubes
    Internal hose:

    Synthetic rubber, extruded whole without joints, of uniform thickness

  • An icon of flexible hoses reinforcement
    Reinforcement:
    • 2 layers of steel wire braid
  • An icon of flexible hoses outer tubes
    Covering:

    Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions

  • An icon of flexible hoses fittings
    Fittings:
    • Ferrule: No-skive Type DPF2T
    • Insert: DPX2XX (X: Can choose)
    • Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved

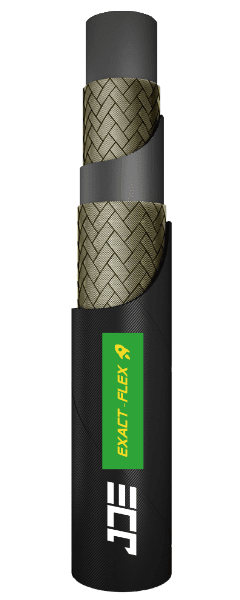

An ISO 11237 R19 fluid hydraulic hose.
  • An icon of flexible hoses working pressure
    Working Pressure:

    280 Bar / 28 MPa / 4060 PSI

  • An icon of flexible hoses impulse
    Impulse times:

    ≥ 200,000 Times

  • An icon of flexible hoses working temperature
    Temperature
    • -40 °C to +100 °C (intermittent 120 °C)
    • -40 °C to +70 °C for water based fluids
    • 0 °C to +70 °C hot air
    • Prolonged operation at extreme temperatures will reduce hoses life
  • An icon of flexible hoses recommend fluid
    Media
    • Mineral and biological oils, glicol-water based, water, lubricants
Specification
Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DME Code
EXA 311119-06 -04 6.4 1/4'' 6.1-6.9 12.4 Max 14.4 Max 280 4060 1120 16240 100 0.290 50/100 DPF2T-04
EXA 311119-08 -05 8.0 5/16'' 7.7-8.5 14.2 Max 16.3 Max 280 4060 1120 16240 115 0.330 50/100 DPF2T-05
EXA 311119-10 -06 9.5 3/8'' 9.3-10.1 16.0 Max 18.0 Max 280 4060 1120 16240 125 0.420 50/100 DPF2T-06
EXA 311119-12 -08 12.7 1/2'' 12.3-13.5 20.4 Max 22.6 Max 280 4060 1120 16240 180 0.550 50/100 DPF2T-08
EXA 311119-16 -10 16.0 5/8'' 15.5-16.7 25.9 Max 27.5 Max 280 4060 1120 16240 205 0.650 50/100 DPF2T-10
EXA 311119-19 -12 19.0 3/4'' 18.6-19.8 29.7 Max 32.5 Max 280 4060 1120 16240 240 0.790 50/100 DPF2T-12
EXA 311119-25 -16 25.4 1'' 25.0-26.4 39.4 Max 39.4 Max 280 4060 1120 16240 300 1.180 50/100 DPF2T-16
Marking / Layline (Printing, Ink, Embossed)
A ISO 11237 R19 flexible hose is marked with the important information: brand, standard, sizes and part number.

Cover Type: Wrapped

Packing Type: Roll, Pallet, Reel

Outward Appearance: Black
