ISO 11237 R16 Wire Braided Hydraulic Hose

Applicable Specs:
  • SAE 100R16
  • ISO 11237-1 R16
  • ISO 1307
Applications:
An icon of engineering equipment of hydraulic hose application. An icon of agricultural equipment of hydraulic hose application. An icon of automation equipment of hydraulic hose application. An icon of port equipment of hydraulic hose application. An icon of petroleum equipment of hydraulic hose application. An icon of high way construction equipment of hydraulic hose application. An icon of marine equipment of hydraulic hose application. An icon of coal mine equipment of hydraulic hose application. An icon of building equipment of hydraulic hose application. An icon of machine tool equipment of hydraulic hose application.
German Technology Equipment German Technology Equipment
Product Series:
  • DME&JDE DEFT FLEX Series Products

    Ultra Soft & Flexible

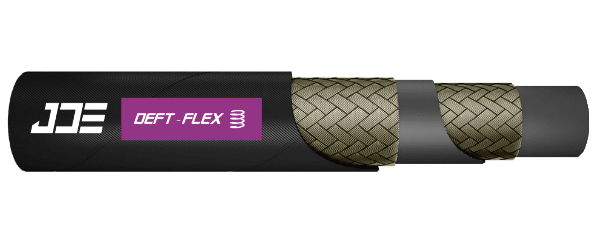

An ISO 11237 R16 fluid hydraulic hose.
  • An icon of flexible hoses inner tubes
    Internal hose:

    Synthetic rubber, extruded whole without joints, of uniform thickness

  • An icon of flexible hoses reinforcement
    Reinforcement:
    • 2 layers of steel wire braid
  • An icon of flexible hoses outer tubes
    Covering:

    Anti-abrasive synthetic rubber, resistant to oils, fuels and atmospheric conditions

  • An icon of flexible hoses fittings
    Fittings:
    • Ferrule: No-skive Type DPF2T
    • Insert: DPX2XX (X: Can choose)
    • Certificate: MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA Approved

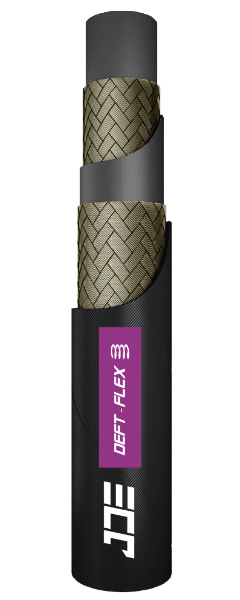

An ISO 11237 R16 fluid hydraulic hose.
  • An icon of flexible hoses working pressure
    Working Pressure:

    125–400 Bar / 1813.5–5800 PSI

  • An icon of flexible hoses impulse
    Impulse times:

    ≥ 200,000 Times

  • An icon of flexible hoses working temperature
    Temperature
    • -40 °C to +100 °C (intermittent 120 °C)
    • -40 °C to +70 °C for water based fluids
    • 0 °C to +70 °C hot air
    • Prolonged operation at extreme temperatures will reduce hoses life
  • An icon of flexible hoses recommend fluid
    Media
    • Mineral and biological oils, glicol-water based, water, lubricants
Specification
Part Number Hose Size I.D. R.O.D. O.D. Operating Pressure Burst Pressure Bend Radius Weight Length Per PCS Ferrule
I.D. Dash Size mm inch mm mm mm bar psi bar psi mm kgs/m meter DME Code
DEF 311116-06 -04 6.4 1/4'' 6.2-7.0 12.3 MAX. 14.5 MAX. 400 5800 1600 23200 50 0.290 50/100 DPF2T-04
DEF 311116-08 -05 8.0 5/16'' 7.7-8.5 13.3 MAX. 15.7 MAX. 350 5075 1400 20300 55 0.330 50/100 DPF2T-05
DEF 311116-10 -06 9.5 3/8'' 9.3-10.1 15.9 MAX. 18.8 MAX. 330 4785 1320 19140 65 0.420 50/100 DPF2T-06
DEF 311116-12 -08 12.7 1/2'' 12.3-13.5 19.0 MAX. 22.0 MAX. 275 3987.5 1100 15950 90 0.550 50/100 DPF2T-08
DEF 311116-16 -10 16.0 5/8'' 15.5-16.7 22.6 MAX. 25.4 MAX. 250 3625 1000 14500 100 0.650 50/100 DPF2T-10
DEF 311116-19 -12 19.0 3/4'' 18.6-19.8 26.3 MAX. 29.0 MAX. 215 3117.5 860 12470 120 0.790 50/100 DPF2T-12
DEF 311116-25 -16 25.4 1'' 25.0-26.4 34.0 MAX. 36.6 MAX. 165 2392.5 660 9570 150 1.180 50/100 DPF2T-16
DEF 311116-32 -20 31.5 1-1/4'' 31.4-33.0 41.9 MAX. 44.3 MAX 125 1812.5 500 7250 210 1.800 40/50 DPF2T-20
Marking / Layline (Printing, Ink, Embossed)
A ISO 11237 R16 flexible hose is marked with the important information: brand, standard, sizes and part number.

Cover Type: Wrapped

Packing Type: Roll, Pallet, Reel

Outward Appearance: Black

Certificate
