TPU Steel Wire Reinforced Hose – Best Replacement of PVC & Rubber Hose

TPU (Thermoplastic Polyurethane) Steel Wire Reinforced Hoses are versatile and robust hoses used in a variety of demanding applications. They combine the flexibility of thermoplastic with the strength of steel reinforcement to deliver a high-performance product.

DME&JDE TPU Steel Wire Reinforced Hose

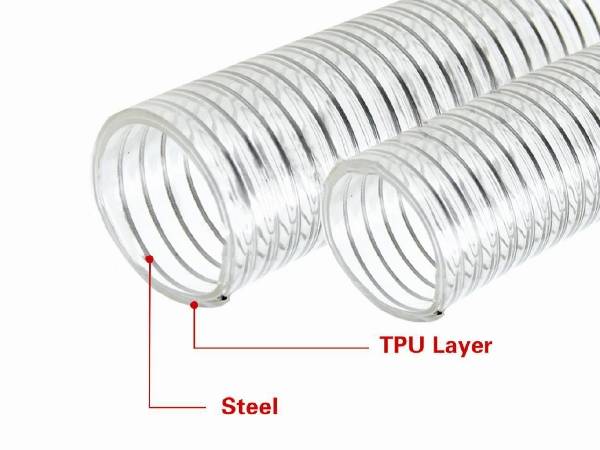

2 TPU steel wire reinforced hoses and their inner hose details

Features

Used for drawing and conveying water, gas, oil in industry, agriculture, fishing, building and household.
TPU hose which pass the food grade test can be used for food industry, conveying milk, beer, beverage and so on.
Best replacement of PVC and rubber hose.
TPU material reinforced with high-grade steel wire screwing inlaid in the hose.
Smooth surface, soft, flexible, high corrosion resistance, good resistance to negative pressure ability, high transparency, high abrasion proof, non-toxic, odorless and small bending radius.
Great low temperature resistance and weather resistance, long life.

Specifications

Table 1: Specification of TPU Steel Wire Reinforced Hose
Inch Size	Metric Size		Length	MAX.W.P	MAX.B.P	Weight
Inch Size	Metric Size		Length	At 23 °C		Weight
inch	I.D. mm	O.D. mm	m/roll	Bar	Bar	g/m
1/2"	12	18	100	8	24	220
5/8"	15	22	50	6	18	300
3/4"	19	26	50	6	18	360
3/4"	20	26	50	6	18	320
7/8"	22	27	50	6	18	300
1"	25	33	50	5	16	540
1-1/4"	32	40	50	5	16	700
1-1/2"	38	48	50	5	15	1000
1-3/4"	45	56	50	5	15	1300
1-7/8"	48	59	50	5	15	1400
2"	50	62	50	5	15	1600
2-5/16"	58	69	40	4	12	1600
2-1/2"	64	78	30	4	12	2500
3"	76	90	30	4	12	3000
